SCIEX 5500 LC-MS / MS Service & Maintenance
Service & Maintenance Support for the SCIEX 5500 LC-MS/MS System
Reliable operation of your SCIEX 5500 LC-MS/MS system is critical for consistent data quality, throughput and uptime. ILS provides independent service, preventative maintenance and break-fix repair for SCIEX 5500 instruments, along with other SCIEX LC-MS/MS platforms. Our local engineers offer 48-hour response time, and we can service a wide range of instruments across your portfolio.

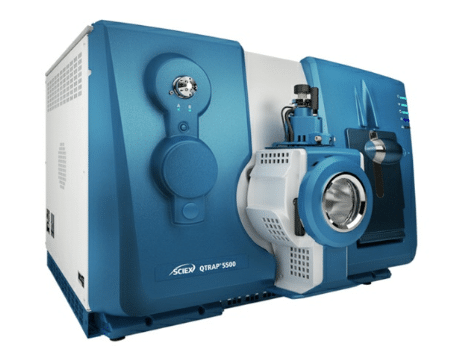

About the 5500 Series: High Sensitivity & Enhanced Capability
The SCIEX 5500 Series is a high-performance triple quadrupole LC-MS/MS platform designed to deliver superior sensitivity, robustness and quantitative reliability across demanding analytical workflows. Optional QTRAP-Ready capability in the 5500+ provides additional scan modes and flexibility for expanded qualitative/quantitative analysis.
The 5500/5500+ platform is widely used in pharmaceutical, biotech, clinical, environmental and food testing laboratories. Typical use cases include trace-level compound quantitation, therapeutic drug monitoring, DMPK/ADME studies, targeted proteomics/metabolite analysis and complex matrix testing.
Preventative Maintenance for the SCIEX 5500
Routine preventative maintenance is essential to keeping the SCIEX 5500 series stable, sensitive and compliant, especially where unplanned downtime and failed calibrations can disrupt reporting and regulatory timelines. Labs can perform this work in-house, tap SCIEX experts directly, or work with an independent service provider like ILS.
In general, SCIEX 5500 maintenance should focus on maintaining optimal vacuum integrity, controlling source and ion path contamination in high-sensitivity workflows, and proactively identifying aging components before they impact trace-level performance, reproducibility or instrument uptime.
Basic SCIEX 5500 Preventative Maintenance
Daily
- Visual inspection of source and spray stability
- Verification of gas pressures and flow consistency
- Monitoring baseline noise and interface pressure trends
Monthly
- Ion source cleaning and probe inspection
- Check sample introduction components for wear or buildup
- Assess sensitivity drift or response changes
Quarterly
- Performance checks, tuning and optimization
- Inspection of roughing and turbo pump performance
- Evaluation of vacuum stability and pump-down behavior
Annual
- Full vacuum system inspection including turbo assembly
- Rough pump service/oil change if applicable
- Deep ion optics and source cleaning and inspection
- Calibration, mass accuracy check and performance validation
Common Issues Addressed During Maintenance
Vacuum System Degradation
- Prolonged pump-down times after venting
- Unstable interface or analyzer pressure readings
- Wear or oil degradation in roughing/turbo pumps
Ion Source Contamination
- Loss of sensitivity or declining response
- Spray instability or inconsistent ionization
- Elevated background noise or interference
Calibration & Tuning Drift
- Inconsistent or failed tuning runs
- Decreased mass accuracy or MRM reproducibility
- Method performance degradation
Gas Flow & Temperature Issues
- Regulator drift or inconsistent gas supply
- Source heater instability affecting desolvation
Electronics
- Power supply fluctuation or internal faults
- Intermittent communication or acquisition errors
“ILS listens. They will help you troubleshoot over the phone if you want to try and get stuff out faster, but if not, they usually will show up the next day without making you jump through a million hoops.”
Complete LC-MS/MS System Coverage
A SCIEX 5500 system doesn’t run alone. In most labs, it operates as part of a complete analytical system — paired with an LC platform and dependent on a stable nitrogen supply from either a central source or an on-site generator.
ILS engineers are qualified to service the entire stack. When your system is down, we don’t stop at the mass spectrometer. We diagnose and provide maintenance across the LC, the MS and the gas supply — because in a high-sensitivity workflow, a problem anywhere in the chain affects results everywhere. That means one vendor, one call, and no finger-pointing delays.
Common SCIEX 5500 Fault Status Troubleshooting
SCIEX 5500 system faults are typically reported through Analyst or SCIEX OS software, with detailed status and scan messages indicating hardware or vacuum conditions. A red LED or alarm indicator may also signal a fault state.
Troubleshooting requires interpretation of software messages and hardware readings by a SCIEX-trained Qualified Maintenance Person or an experienced independent engineer from ILS. Common fault symptoms include unstable vacuum pressure, source issues or gas flow irregularities.
ILS Offers Trustworthy, Affordable Third-Party Service for SCIEX 5500 Systems
Having an issue with your SCIEX 5500 LC-MS / MS system? ILS has the answer. Our team of engineers provides preventative maintenance, troubleshooting and emergency repairs nationwide.
Our team is held to the same quality standards as OEM engineers, but we’re set apart by true 48-hour response times, multi-vendor service, and flexible engagement models.If you simply need your SCIEX 5500 LC-MS / MS to deliver high-sensitivity, reliable quantitative results with zero downtime, ILS is your best option.
