Agilent 1200 Series HPLC Service & Maintenance
Service & Maintenance Support for Agilent 1200 Series HPLC Systems
Reliable operation of your Agilent 1200 Series HPLC system is critical for consistent chromatographic performance, throughput and uptime. ILS provides independent service, preventative maintenance and break-fix repair for Agilent 1200 Series instruments. Our local engineers offer 48-hour response time, and we can service a wide range of instruments across your portfolio.

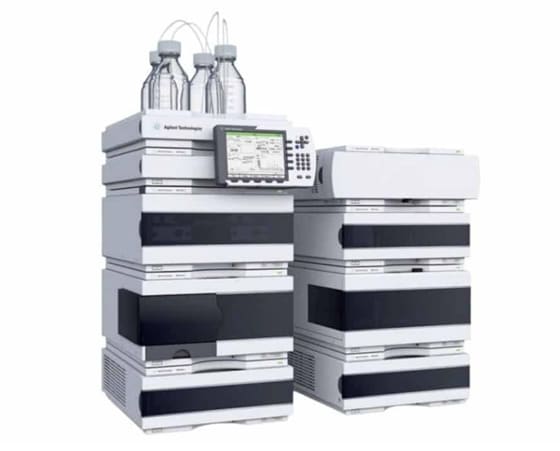

About the 1200 Series: Reliable Solvent Delivery & LC Performance
The Agilent 1200 Series (including capillary LC configurations) is a widely deployed modular HPLC platform, used in labs that need reliable liquid chromatography performance. The platform is commonly used in pharmaceutical, biotech, environmental and food testing laboratories. Typical use cases include routine separations, method development, QC testing, impurity profiling and contaminant analysis.
The 1200 Series is a modular platform. ILS engineers are trained across the full range of 1200 Series modules and common configurations, including standalone and stacked setups. Most 1200 systems run under ChemStation or OpenLab CDS, and ILS engineers support both — including communication faults between modules, method configuration issues and ChemStation error diagnosis.
| Module | Description |
|---|---|
| G1310B / G1311B | Isocratic & Quaternary Pump — single-solvent and multi-solvent gradient delivery; quaternary capable of up to four solvents at high pressure |
| G1312B | Binary Pump — high-pressure binary gradient; used for two-solvent gradient work |
| G1329B | Thermostatted Autosampler — automated sample injection with optional temperature control for thermally sensitive samples |
| G1315C / G1315D | Diode Array Detector (DAD) — simultaneous UV/Vis detection across the full wavelength range with spectral confirmation capability |
| G1314B | Variable Wavelength Detector (VWD) — single-wavelength UV detection optimized for high sensitivity at a fixed wavelength |
| G1321B | Fluorescence Detector (FLD) — excitation/emission detection for high-sensitivity analysis of fluorescent compounds |
| G1362A | Refractive Index Detector (RID) — universal concentration-based detection for non-UV-absorbing compounds such as sugars, polymers, and alcohols |
| G1379B | Vacuum Degasser — continuous in-line solvent degassing to eliminate dissolved gases and reduce baseline noise and pressure fluctuation |
| G1316B | Thermostatted Column Compartment (TCC) — precise temperature control for improved retention time reproducibility and method consistency |
| G1323B | ChemStation Controller — system control, method management, and data acquisition via Agilent ChemStation software |
Preventative Maintenance for the Agilent 1200
Routine preventative maintenance is essential to keeping the Agilent 1200 Series stable and compliant, especially where unplanned downtime, leaks or pressure faults can disrupt reporting and regulatory timelines. Labs can perform this work in-house, tap Agilent support directly, or work with an independent service provider like ILS.
In general, Agilent 1200 maintenance should be focused on stabilizing solvent delivery, maintaining leak-tight fluidic paths and identifying aging components.
Basic Agilent Preventative Maintenance
Daily
- Visual inspection for leaks at pump heads, fittings and the column compartment
- Verification of stable system pressure and pressure ripple
- Monitoring baseline noise and detector lamp status
Monthly
- Inspect and replace inlet and purge-valve frits as needed
- Check seal-wash system and solvent lines for buildup or wear
- Assess retention-time and peak-shape consistency
Quarterly
- Performance checks across pump, sampler and detector modules
- Inspect needle and needle-seat components for wear or carryover
- Run a pressure/leak-rate test and evaluate degasser performance
Annual
- Replace pump seals and pistons (replaced as a set) and rear seal-wash seals
- Service or replace check valves and worn injector components
- Detector lamp inspection and replacement if intensity has degraded
- Full operational qualification, calibration and performance verification
Common Issues Addressed During Maintenance
Pump & High-Pressure Delivery
- Pump unable to reach required pressure or failing leak-rate tests
- Unstable pressure ripple or fluctuating back-pressure
- Trapped gas inside the pump head causing test failures
Seal, Piston & Check-Valve Wear
- Pump-head leaks from worn seals or secondary leaks after service
- Piston wear from running the pump dry
- Inconsistent gradient formation or flow precision
Sampler & Injector
- Simultaneous needle and needle-seat blockages
- Sample carryover between injections
- Injection-volume irreproducibility
Detector & Baseline
- Elevated baseline noise or drift
- Declining lamp intensity affecting sensitivity
- Flow-cell contamination or air bubbles
Fluidics & Consumables
- Blocked purge-valve or column frits
- Degasser inefficiency causing bubble-related instability
- Mobile-phase contamination or precipitation
“ILS listens. They will help you troubleshoot over the phone if you want to try and get stuff out faster, but if not, they usually will show up the next day without making you jump through a million hoops.”
Common Agilent 1200 Fault Status Troubleshooting
Agilent 1200 LC system faults are typically reported via the system control interface or workstation software. Module status indicators may display not-ready or error states to help isolate the affected component.
Agilent systems do not rely on a single universal fault code. Rather, troubleshooting must be performed by a trained maintenance professional or an independent engineer from ILS. Common symptoms of Agilent 1200 faults include high system pressure, leak detection alerts, degasser vacuum errors or detector signal instability.
ILS Offers Trustworthy, Affordable Third-Party Service for Agilent 1200 Systems
Having an issue with your Agilent 1200 HPLC system? ILS has the answer. Our team of engineers provides preventative maintenance, troubleshooting and emergency repairs nationwide. Our team is held to the same quality standards as OEM engineers, but we’re set apart by true 48-hour response times, multi-vendor service, and flexible engagement models.
If you simply need your Agilent 1200 HPLC to deliver reliable results with zero downtime, ILS is your best option.
